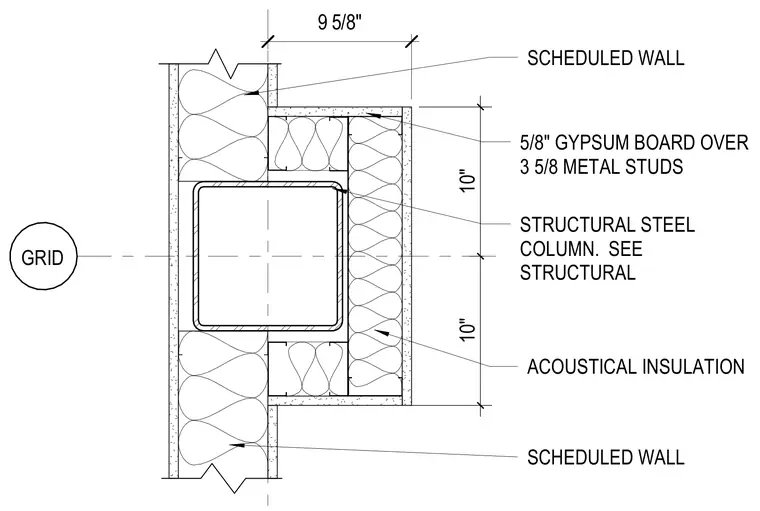

A structural steel column is framed with three and five-eighths inch metal studs and finished with five-eighths inch gypsum board. Acoustical insulation fills the cavity between the framing and the structural member. The assembly is coordinated with scheduled wall types and aligned with the column grid.
10" 10" 5/8" GYPSUM BOARD OVER 3 5/8 METAL STUDS STRUCTURAL STEEL COLUMN. SEE STRUCTURAL SCHEDULED WALL SCHEDULED WALL ACOUSTICAL INSULATION 9 5/8" GRID
