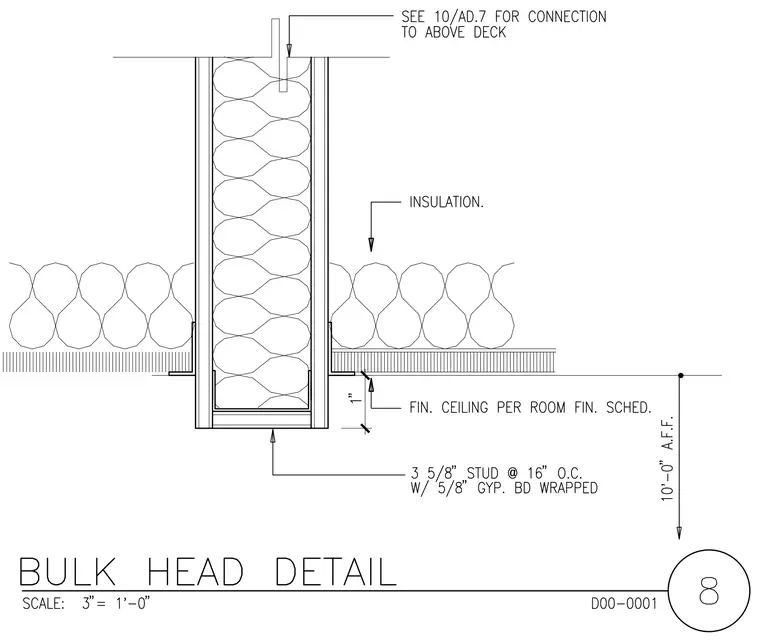

An interior partition wall extends vertically through a finished ceiling plane at a height of 10'-0" above finished floor. The wall is framed with 3 5/8 inch studs spaced at 16 inches on center, wrapped with 5/8 inch gypsum board and filled with batt insulation. The finished ceiling is positioned 1 inch below a horizontal trim reveal, with the ceiling board per the room finish schedule. The top of the wall partition connects to the above deck structure as referenced by sheet callout.
