Architectural · A-PAPZV

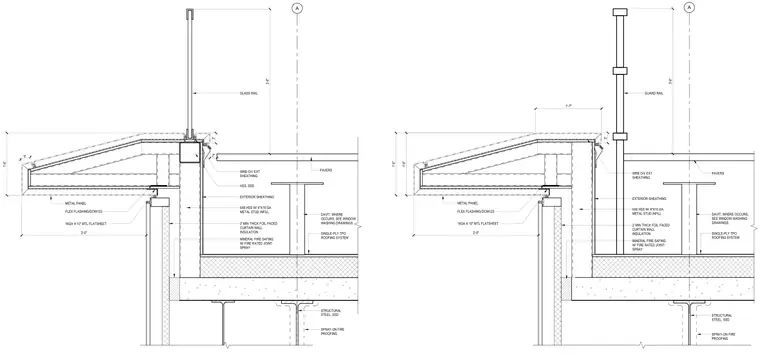

Canopy Section at Glass Railing

Materials

Steel Cold-formed Steel Timber / Wood Glass / Glazing Metal (misc.)Membrane / Roofing

Elements

Walls Windows Curtain Walls Facades / Cladding Railings / Guards Roofs Canopies Waterproofing / Flashing Insulation

Connections

HSS Connection

About this detail

A roof canopy edge transition assembly incorporates a glass railing and a guardrail supported by a structural steel framing system. The assembly integrates a six-by-six hollow structural section with six-inch sixteen-gauge metal stud infill, exterior sheathing, and a weather-resistive barrier underneath sixteen-gauge by ten-inch metal flat sheets. The roof system incorporates a single-ply thermoplastic polyolefin membrane over two inches of foil-faced curtain wall insulation, concrete pavers on supports, and spray-on fireproofing on the underlying structural steel. Flexible flashing and Dow Corning 123 silicone seal provide waterproofing at the joints, while mineral wool fire safing with a fire-rated joint spray is installed at the perimeter slab edge. Window washing davits are included where indicated per specific equipment drawings.
