Architectural · A-PA89R

ADA Compliant Room Identification Signage Detail

Elements

About this detail

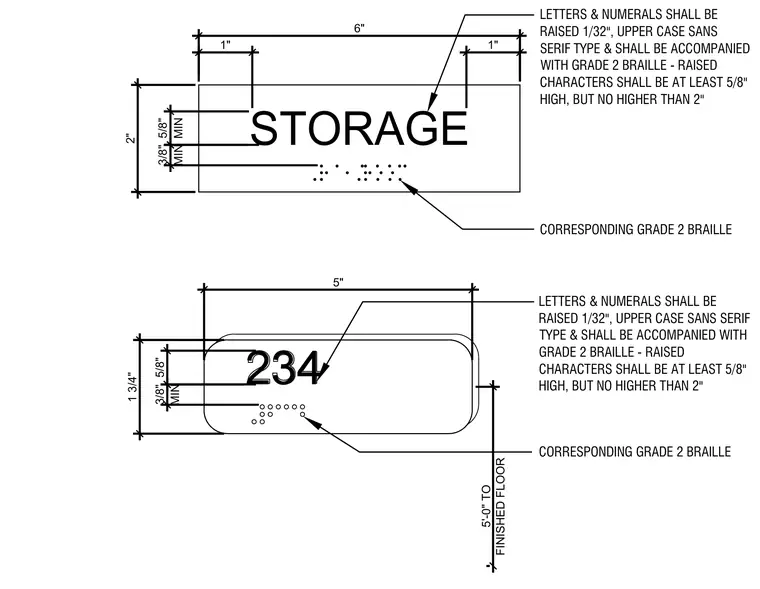

Room identification and storage signage features raised uppercase sans serif characters at least 5/8 inch high and no higher than 2 inches, elevated by 1/32 inch with corresponding grade 2 braille below. The storage sign measures 6 inches wide by 2 inches high with 1 inch side margins, 5/8 inch character height, and 3/8 inch minimum spacing. The room number sign measures 5 inches wide by 1 and 3/4 inches high and is mounted 5 feet zero inches to the finished floor.
