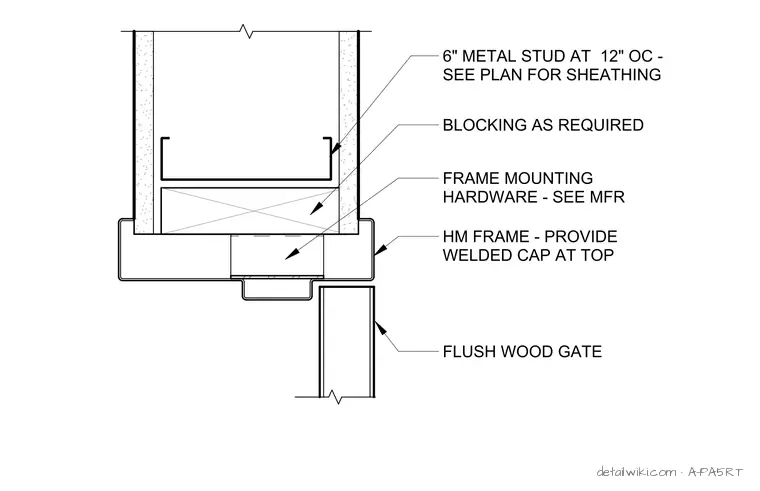

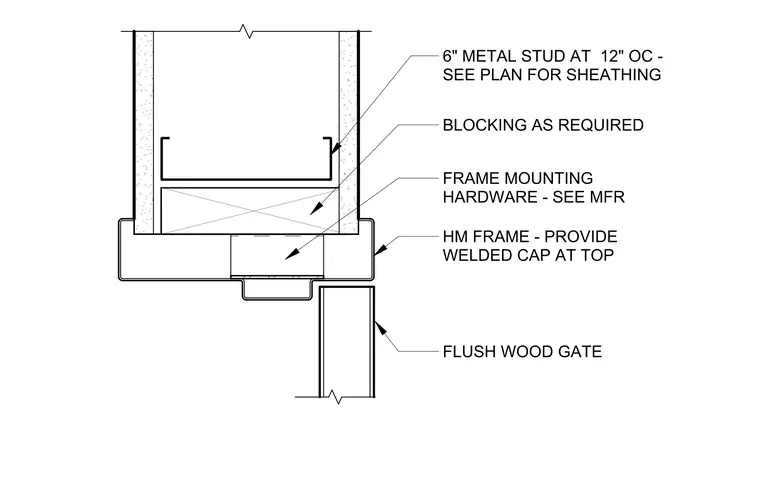

The assembly consists of a six-inch metal stud wall spaced at twelve inches on center with sheathing as specified in the plans. Blocking is installed as required within the stud cavity to support the frame mounting hardware, which is installed per the manufacturer's instructions. A hollow metal frame is secured to the wall assembly, featuring a welded cap at the top. A flush wood gate or half-height door is positioned within the frame.
