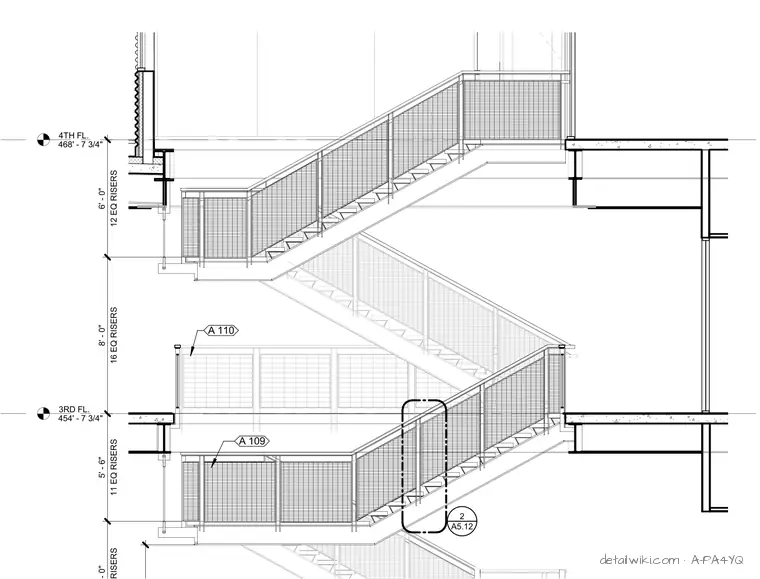

Text on the drawing
3RD FL. 454' - 7 3/4" 4TH FL. 468' - 7 3/4" A5.12 2 12 EQ RISERS 6' - 0" 16 EQ RISERS 8' - 0" 11 EQ RISERS 5' - 6" A 110 A 109
