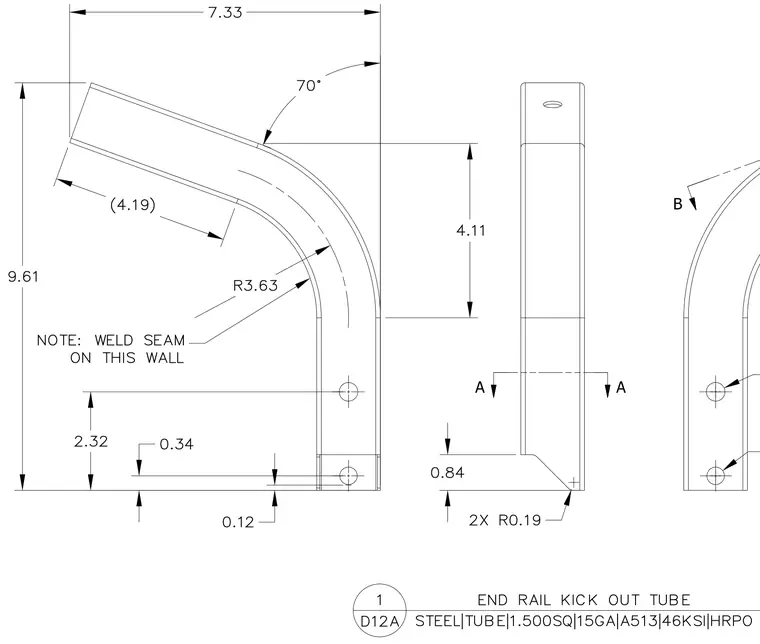

An end rail kick out tube is fabricated from 1.500-inch square, 15-gauge A513 hot-rolled pickled and oiled structural steel tubing with a 46 KSI minimum yield strength. The component features a 70-degree bend with a 3.63-inch radius and overall dimensions of 9.61 inches high by 7.33 inches wide. Mounting holes and corner radii are specified with precise offsets, and a note indicates the weld seam must be positioned on the wall side.
B A A (4.19) R3.63 70° 4.11 0.12 2X R0.19 0.84 9.61 7.33 0.34 2.32 NOTE: WELD SEAM ON THIS WALL END RAIL KICK OUT TUBE 1 D12A STEEL|TUBE|1.500SQ|15GA|A513|46KSI|HRPO © v £ — J
