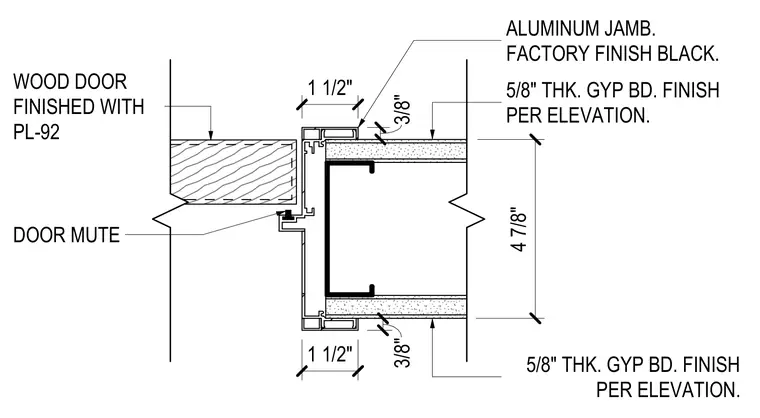

A wood door finished with laminate PL-92 meets an aluminum jamb with a factory black finish. The surrounding partition consists of metal studs framed with five-eighths inch thick gypsum board on each side. A door mute is installed at the stop to cushion closure. Wall thickness measures four and seven-eighths inches overall with jamb dimensions extending one and one-half inches.
1 1/2" 1 1/2" 3/8" 3/8" 4 7/8" WOOD DOOR FINISHED WITH PL-92 ALUMINUM JAMB. FACTORY FINISH BLACK. 5/8" THK. GYP BD. FINISH PER ELEVATION. DOOR MUTE 5/8" THK. GYP BD. FINISH PER ELEVATION.
