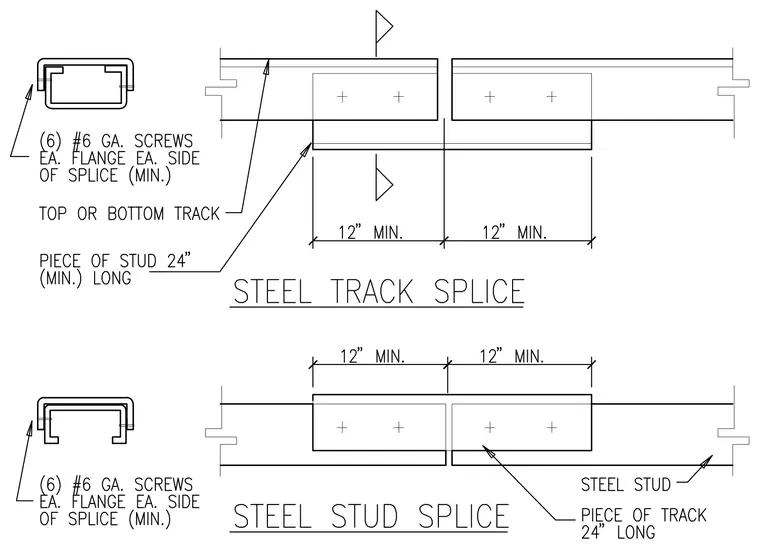

Cold-formed steel framing connections join aligned top or bottom tracks using a twenty-four inch minimum length piece of stud nested inside the track profile. Each side of the splice requires six number six gauge screws on each flange. Steel stud splices connect aligned framing studs using a twenty-four inch long piece of track nested over the stud profile, secured with six number six gauge screws on each flange.
