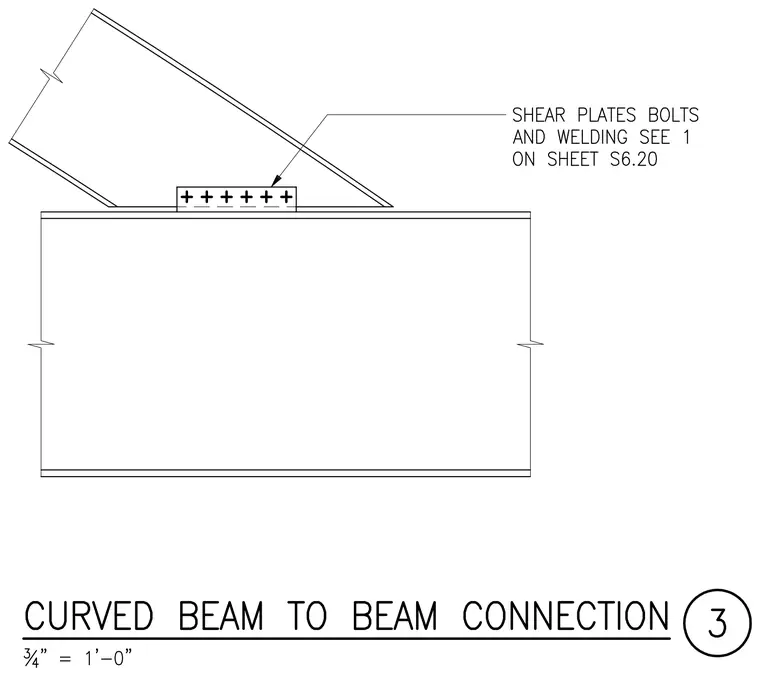

An angled curved structural steel beam frames into the top flange of a horizontal supporting beam via a connected shear plate assembly. The joint incorporates shear plates, bolts, and field welding configured per sheet S6.20 detail 1. The structural arrangement transfers vertical loads from the inclined curved member directly into the primary beam.
