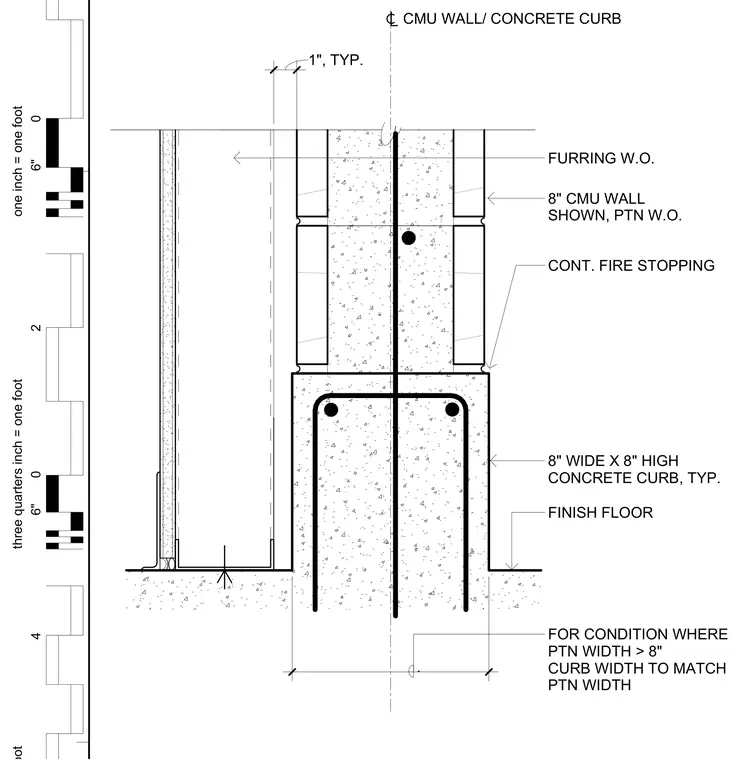

An eight-inch wide by eight-inch high concrete curb supports an eight-inch concrete masonry unit partition wall above the finish floor. Continuous fire stopping is installed at the wall base interface. Furring is applied alongside the masonry wall with a typical one-inch clearance dimension. For conditions where the partition width exceeds eight inches, the concrete curb width matches the partition width.
CONT. FIRE STOPPING FINISH FLOOR 8" CMU WALL SHOWN, PTN W.O. 8" WIDE X 8" HIGH CONCRETE CURB, TYP. CMU WALL/ CONCRETE CURB 1", TYP. FURRING W.O. . FOR CONDITION WHERE PTN WIDTH > 8" CURB WIDTH TO MATCH PTN WIDTH one inch = one foot 0 6" 6" 0 2 three quarters inch = one foot 4
