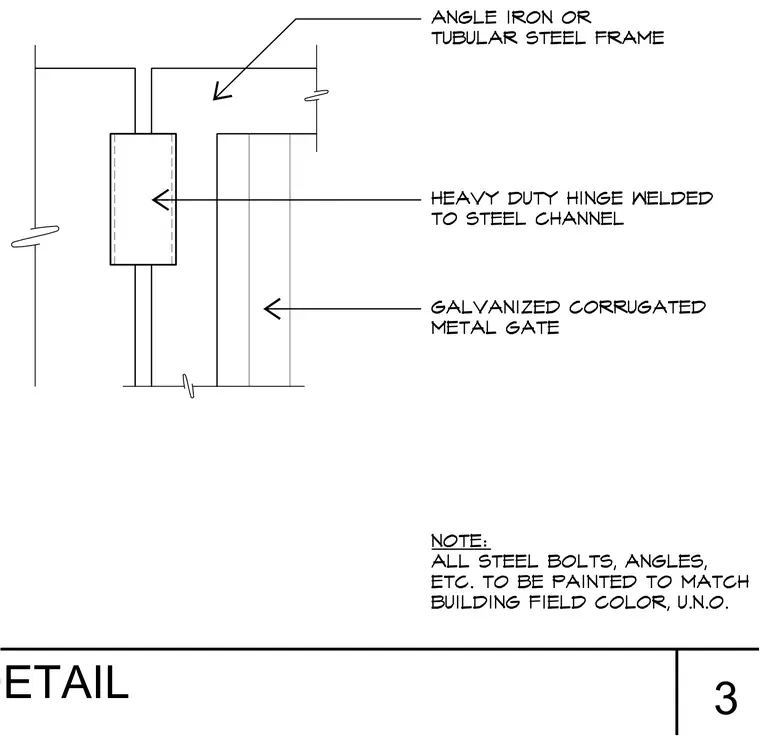

A heavy duty hinge is welded to a steel channel supporting a galvanized corrugated metal gate. The gate assembly hangs from an angle iron or tubular steel frame. All steel bolts, angles, and related components are painted to match the building field color unless noted otherwise.
