A-P92TQ — Parapet at 4th Fl North West

Architectural · A-P92TQ

Parapet at 4th Fl North West

Scale: 3" = 1'-0"
Units: imperial
Sheet: A7.32
Discipline: Architectural

Materials

Brick Cold-formed Steel Metal (misc.)Timber / Wood

Elements

Facades / Cladding Parapets Waterproofing / Flashing

Text on the drawing

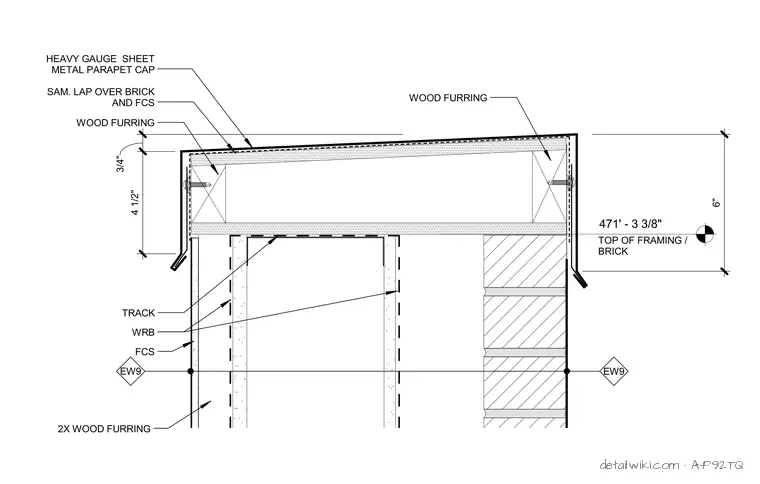

6" 471' - 3 3/8" TOP OF FRAMING / BRICK 4 1/2" 3/4" EW9 EW9 HEAVY GAUGE SHEET METAL PARAPET CAP SAM. LAP OVER BRICK AND FCS WOOD FURRING WOOD FURRING WRB FCS 2X WOOD FURRING TRACK
