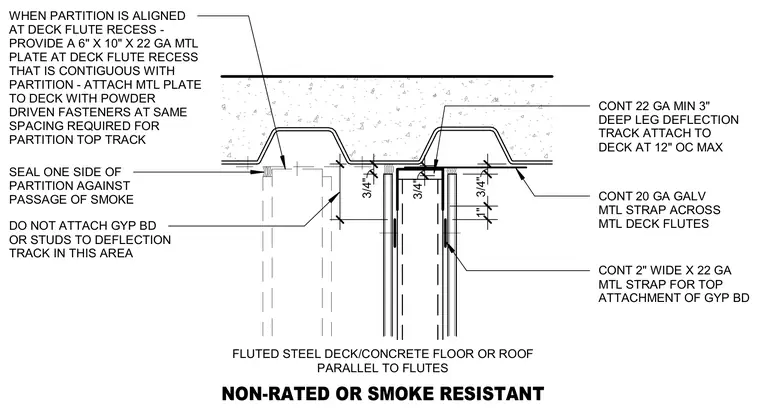

A non-rated smoke-resistant partition head intersects a fluted steel deck and concrete floor or roof parallel to the flutes. The assembly features a continuous twenty-gauge galvanized metal strap spanning across the metal deck flutes, paired with a continuous twenty-two gauge minimum three-inch deep leg deflection track attached to the deck at twelve inches on center maximum with powder-driven fasteners. A continuous twenty-two gauge metal strap measuring two inches wide is provided for top attachment of the gypsum board. When the partition aligns at the deck flute recess, a six by ten by twenty-two gauge metal plate contiguous with the partition is installed and fastened to the deck with powder-driven fasteners at the same spacing required for the partition top track. Gypsum board and studs are left unattached to the deflection track in this designated area, and one side of the partition is sealed against the passage of smoke.
1" 4 7/64" NON-RATED OR SMOKE RESISTANT FLUTED STEEL DECK/CONCRETE FLOOR OR ROOF PARALLEL TO FLUTES CONT 2" WIDE X 22 GA MTL STRAP FOR TOP ATTACHMENT OF GYP BD CONT 22 GA MIN 3" DEEP LEG DEFLECTION TRACK ATTACH TO DECK AT 12" OC MAX DO NOT ATTACH GYP BD OR STUDS TO DEFLECTION TRACK IN THIS AREA SEAL ONE SIDE OF PARTITION AGAINST PASSAGE OF SMOKE WHEN PARTITION IS ALIGNED AT DECK FLUTE RECESS - PROVIDE A 6" X 10" X 22 GA MTL PLATE AT DECK FLUTE RECESS THAT IS CONTIGUOUS WITH PARTITION - ATTACH MTL PLATE TO DECK WITH POWDER DRIVEN FASTENERS AT SAME SPACING REQUIRED FOR PARTITION TOP TRACK 3/4" 3/4" CONT 20 GA GALV MTL STRAP ACROSS MTL DECK FLUTES 3/4"
