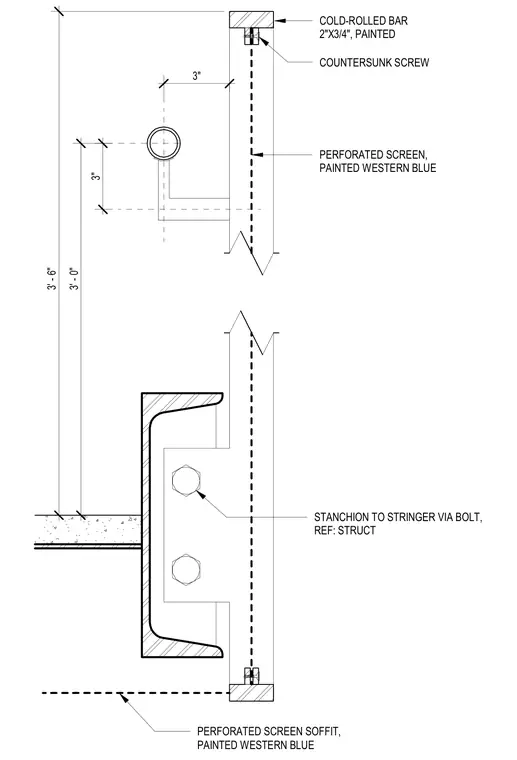

A stair stanchion connects to the stringer via bolts with reference to structural drawings. A painted Western Blue perforated screen spans the assembly, backed by a cold-rolled bar measuring two inches by three-quarters of an inch secured with countersunk screws. The soffit detail aligns with the perforated screen finish and dimensions.
3" 3" 3' - 0" PERFORATED SCREEN, PAINTED WESTERN BLUE COLD-ROLLED BAR 2"X3/4", PAINTED COUNTERSUNK SCREW PERFORATED SCREEN SOFFIT, PAINTED WESTERN BLUE STANCHION TO STRINGER VIA BOLT, REF: STRUCT 3' - 6"
