A partition wall as scheduled rests on a concrete slab with a one-quarter-inch clearance. The assembly includes acoustical insulation within the stud cavity and gypsum board on each side. A fire barrier sealant is applied at the outside layer of the gypsum board on each side at rated partitions. Acoustical sealant is used at full-height partitions with acoustical insulation. Fasteners secure the bottom track to the slab per referenced details.

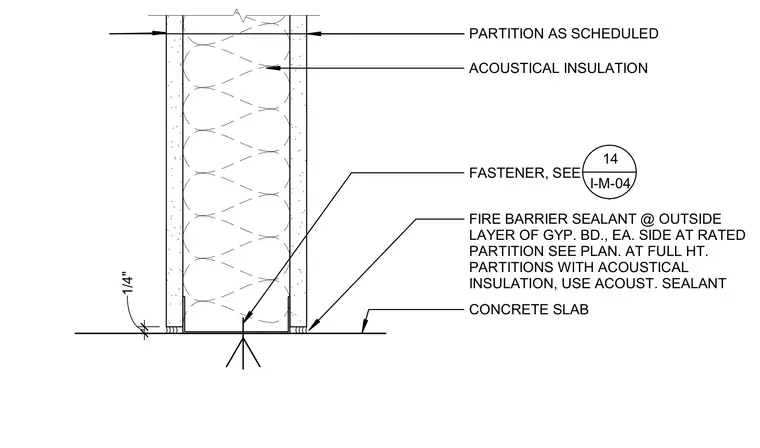

PARTITION AS SCHEDULED ACOUSTICAL INSULATION FASTENER, SEE 14 I-M-04 FIRE BARRIER SEALANT @ OUTSIDE LAYER OF GYP. BD., EA. SIDE AT RATED PARTITION SEE PLAN. AT FULL HT. PARTITIONS WITH ACOUSTICAL INSULATION, USE ACOUST. SEALANT CONCRETE SLAB 1/4"
