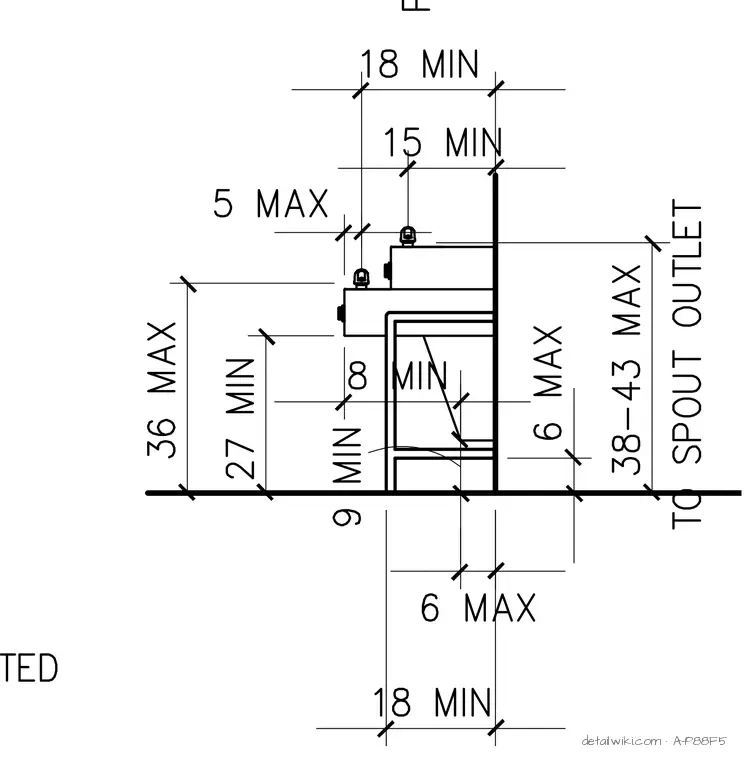

Wall-mounted drinking fountain accessibility requirements include a spout outlet height of 38 to 43 inches above the finished floor. The unit requires a minimum knee clearance of 27 inches high by 8 inches deep, with a total toe clearance of 9 inches high. Fountain projection is limited to a maximum of 5 inches from the wall, while maintaining a minimum clear floor space of 30 by 48 inches, with 18-inch minimum side clearances and a 6-inch maximum depth for the knee space. The overall unit height is capped at 36 inches maximum to the top of the fountain.
