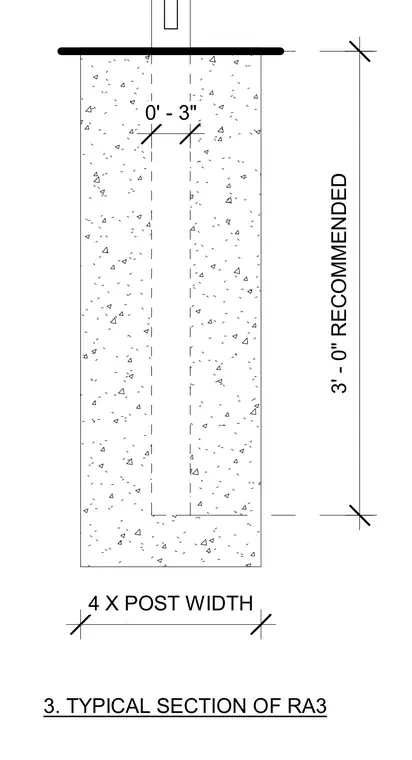

Typical foundation section for an open slat site fence post embedded in a concrete footing. The post is centered within a concrete pier measuring four times the post width in diameter. The footing reaches a recommended depth of three feet. A three-inch clearance is maintained at the top surface.
0' - 3" 3. TYPICAL SECTION OF RA3 3' - 0" RECOMMENDED 4 X POST WIDTH
