A J-runner top track is secured to the underside of a concrete-filled metal deck with a defined gap left between the top of the steel studs and the track. Mineral wool is packed into the metal deck flutes across the full width, and gypsum board stops short of the deck. An additional layer of gypsum board is provided where required by rating. A spray sealant is applied at the head joint, using white smoke or acoustic spray at non-rated partitions and red fire spray at rated partitions.

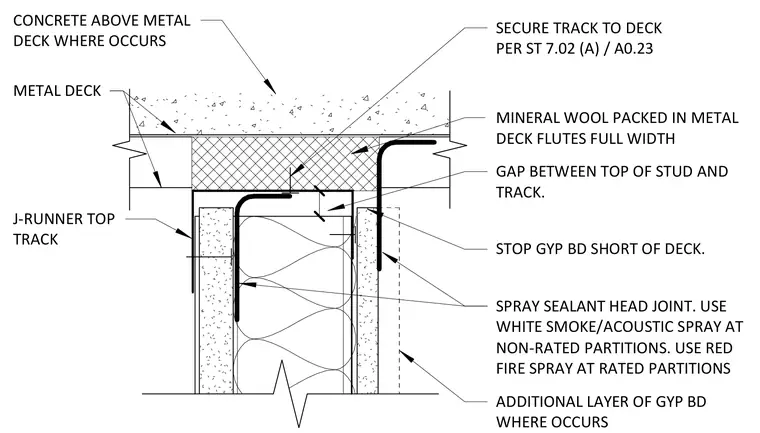

MINERAL WOOL PACKED IN METAL DECK FLUTES FULL WIDTH J-RUNNER TOP TRACK ADDITIONAL LAYER OF GYP BD WHERE OCCURS METAL DECK GAP BETWEEN TOP OF STUD AND TRACK. SPRAY SEALANT HEAD JOINT. USE WHITE SMOKE/ACOUSTIC SPRAY AT NON-RATED PARTITIONS. USE RED FIRE SPRAY AT RATED PARTITIONS CONCRETE ABOVE METAL DECK WHERE OCCURS SECURE TRACK TO DECK PER ST 7.02 (A) / A0.23 STOP GYP BD SHORT OF DECK.
