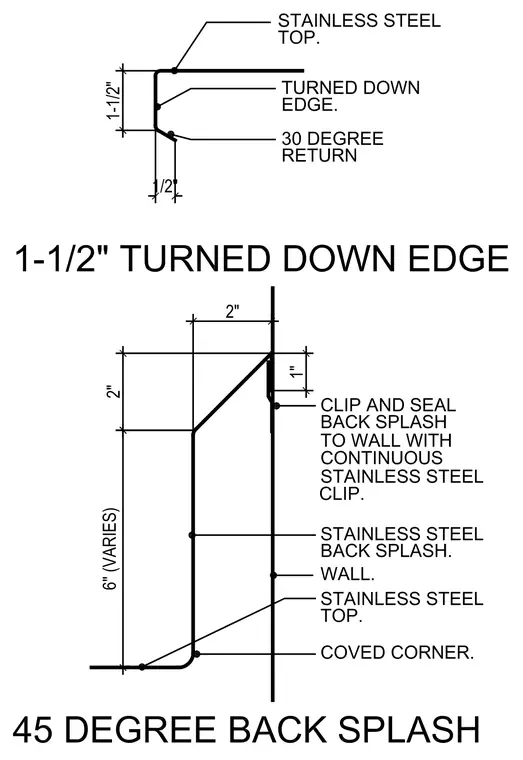

The countertop consists of a stainless steel top with a one-and-a-half-inch turned-down edge terminating in a thirty-degree return measuring one-half inch. The backsplash detail features a forty-five-degree sloped stainless steel backsplash secured to the wall with a continuous stainless steel clip, sealed at the top, and transitioning to the countertop with a coved corner. The variable height of the backsplash is indicated at six inches, with a two-inch horizontal projection and a one-inch vertical clip attachment at the wall interface.
