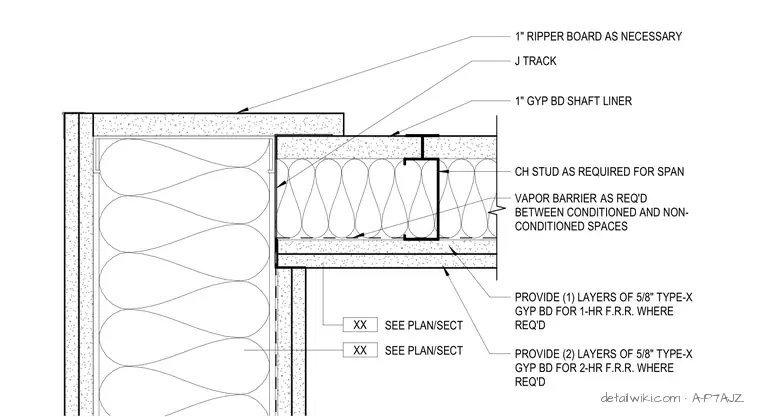

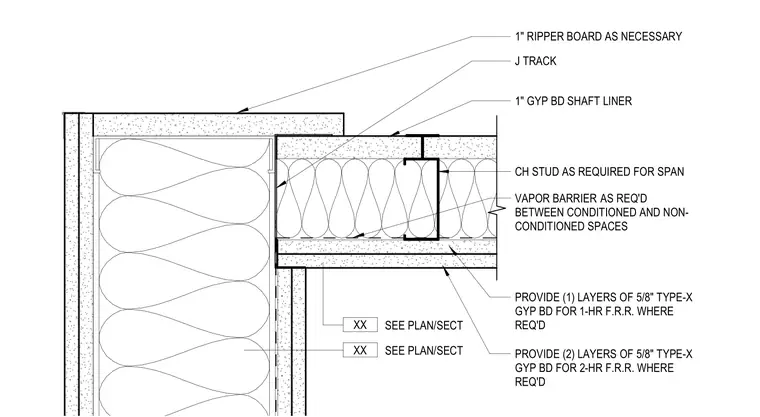

This assembly utilizes a J-track to terminate the one-inch gypsum board shaft liner at the ceiling transition. The shaft wall is framed with CH studs sized as required for the span, with a vapor barrier installed between conditioned and non-conditioned spaces. The ceiling finish consists of either one layer of five-eighths-inch Type-X gypsum board for a one-hour fire-resistance rating or two layers of five-eighths-inch Type-X gypsum board for a two-hour fire-resistance rating. A one-inch ripper board is provided as necessary to complete the transition at the wall junction.
Text on the drawing
CH STUD AS REQUIRED FOR SPAN VAPOR BARRIER AS REQ'D BETWEEN CONDITIONED AND NON- CONDITIONED SPACES SEE PLAN/SECT XX 1" GYP BD SHAFT LINER SEE PLAN/SECT XX 1" RIPPER BOARD AS NECESSARY PROVIDE (1) LAYERS OF 5/8" TYPE-X GYP BD FOR 1-HR F.R.R. WHERE REQ'D PROVIDE (2) LAYERS OF 5/8" TYPE-X GYP BD FOR 2-HR F.R.R. WHERE REQ'D J TRACK
