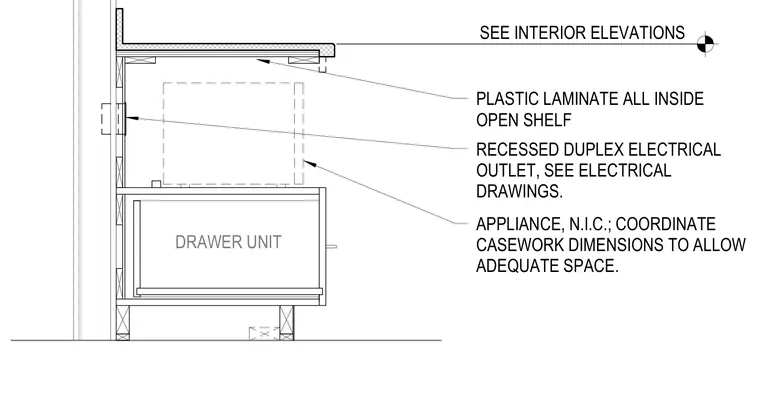

This millwork detail shows a base cabinet assembly with a plastic laminate finish applied to all inside surfaces of the open shelf. A recessed duplex electrical outlet is positioned at the back of the shelf for appliance connection, coordinated with electrical drawings. The base unit includes a lower drawer unit and casework dimensions that must be coordinated to accommodate the small appliance, which is provided not in contract. Countertop and interior surfaces are fully plastic laminated.
SEE INTERIOR ELEVATIONS APPLIANCE, N.I.C.; COORDINATE CASEWORK DIMENSIONS TO ALLOW ADEQUATE SPACE. PLASTIC LAMINATE ALL INSIDE OPEN SHELF DRAWER UNIT RECESSED DUPLEX ELECTRICAL OUTLET, SEE ELECTRICAL DRAWINGS.
