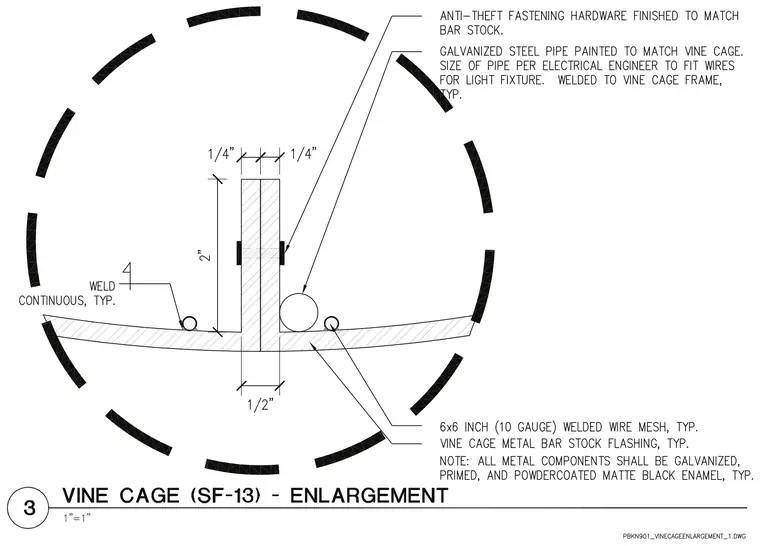

A circular vine cage enlargement is constructed from vine cage metal bar stock flashing with six-inch by six-inch ten-gauge welded wire mesh. The vertical member consists of two pieces of bar stock joined with anti-theft fastening hardware finished to match the bar stock. A galvanized steel pipe, sized per the electrical engineer to fit wires for a light fixture, is welded to the vine cage frame. All metal components are specified to be galvanized, primed, and powder-coated matte black enamel, with continuous welds provided typically.
