Architectural · A-P6RG5

Rated Partition Intersection at Vertical Mullion

Materials

Elements

Walls Partitions Floors / Slabs Insulation

About this detail

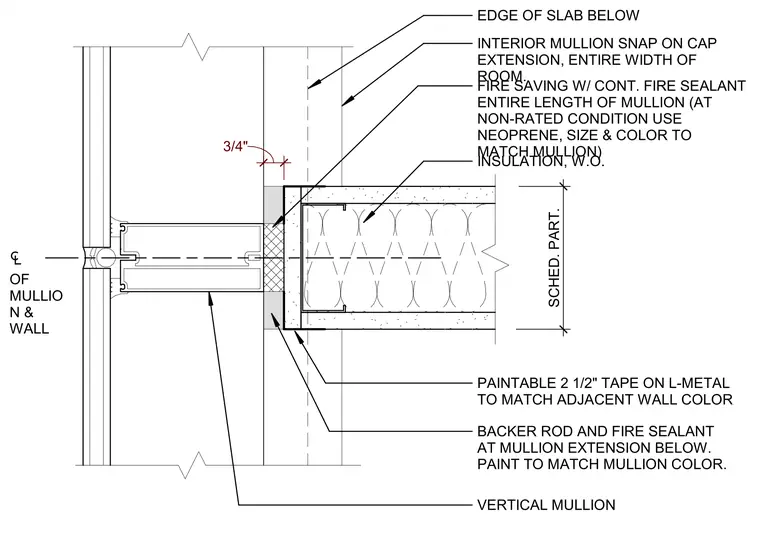

A rated partition abuts a vertical mullion with insulation, backer rod, and continuous fire-saving sealant spanning the length of the mullion. Neoprene is substituted at non-rated conditions, sized and colored to match the mullion. L-metal angle trim is finished with paintable two-and-a-half-inch tape to match the adjacent wall color. An interior snap-on cap extension covers the full width of the room, aligning with the edge of the slab below.
