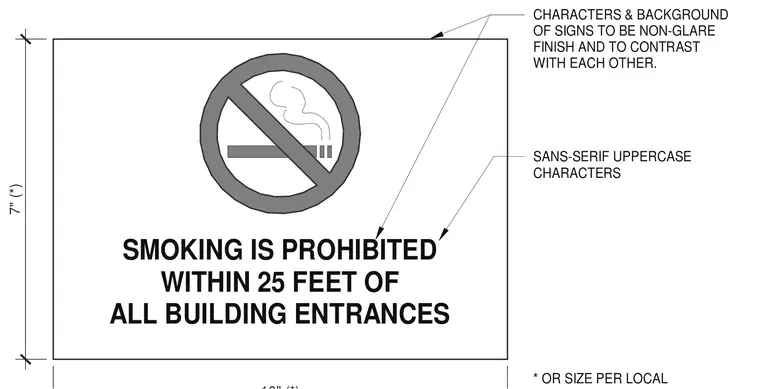

A no smoking sign specification detail layout featuring seven-inch sans-serif uppercase characters and a non-glare finish with contrasting background. The sign specifies a prohibition of smoking within twenty-five feet of all building entrances with sizing determined per local codes.
SMOKING IS PROHIBITED WITHIN 25 FEET OF ALL BUILDING ENTRANCES 7" (*) CHARACTERS & BACKGROUND OF SIGNS TO BE NON-GLARE FINISH AND TO CONTRAST WITH EACH OTHER. SANS-SERIF UPPERCASE CHARACTERS * OR SIZE PER LOCAL
