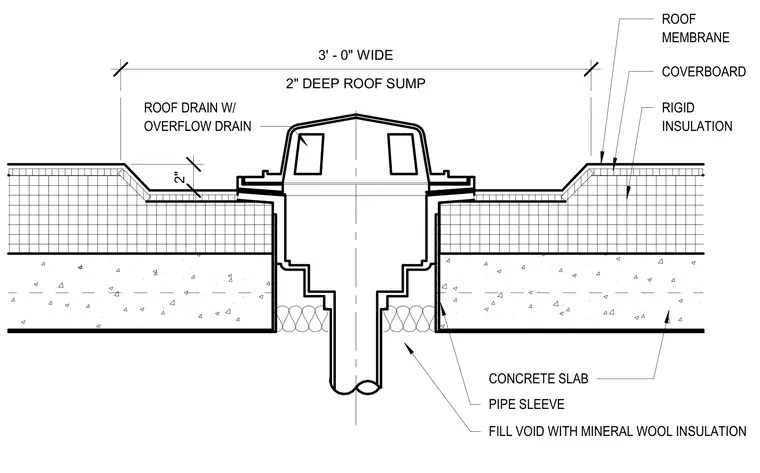

A roof drain with an overflow drain sits centered within a three-foot-wide by two-inch-deep roof sump formed in the insulation layer. The roof membrane extends down into the sump and seals directly to the roof drain flange over a coverboard and rigid insulation. The entire assembly passes through a concrete slab via a pipe sleeve. The void around the drain pipe is filled with mineral wool insulation.
2" DEEP ROOF SUMP 3' - 0" WIDE ROOF DRAIN W/ OVERFLOW DRAIN ROOF MEMBRANE COVERBOARD RIGID INSULATION CONCRETE SLAB PIPE SLEEVE FILL VOID WITH MINERAL WOOL INSULATION 2"
