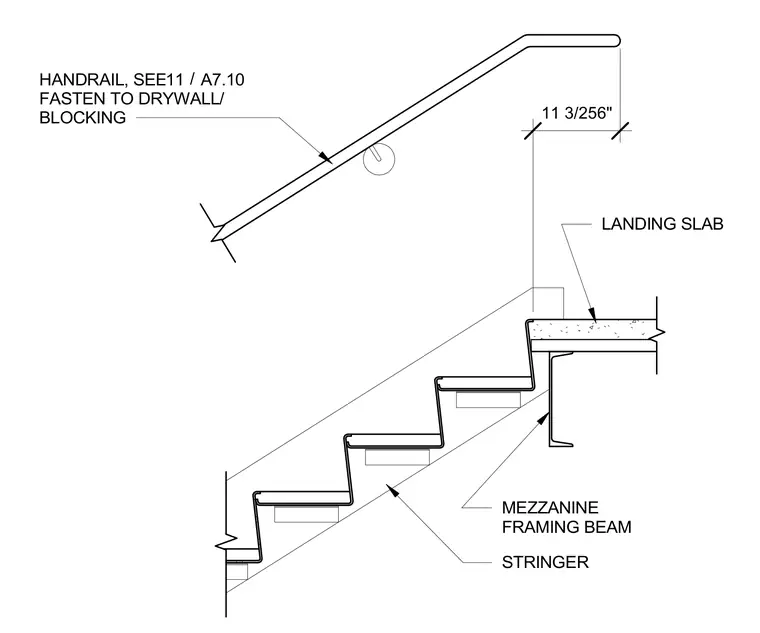

This stair detail shows a formed stair stringer anchoring to a mezzanine framing beam at the landing slab. A wall-mounted handrail fastens through the gypsum drywall into concealed blocking.
MEZZANINE FRAMING BEAM STRINGER LANDING SLAB 11 3/256" HANDRAIL, SEE FASTEN TO DRYWALL/ BLOCKING / 11 A7.10
