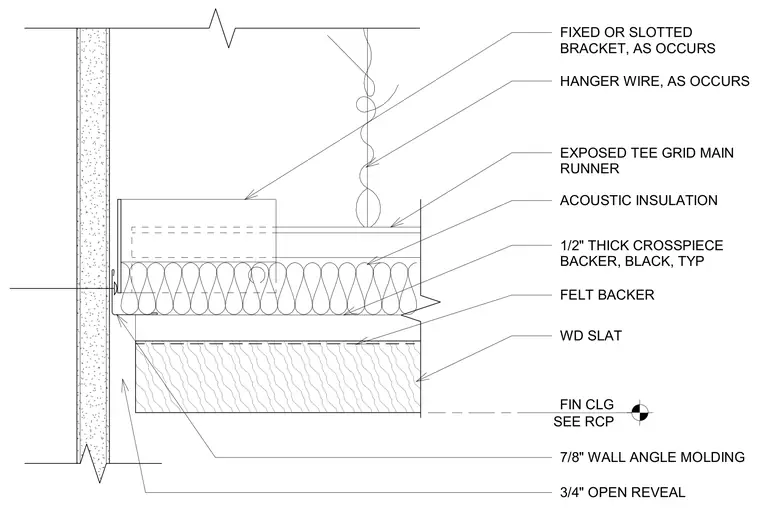

A suspended wood slat ceiling system terminates at a vertical wall using a 7/8-inch wall angle molding and a 3/4-inch open reveal. The assembly consists of finished wood slats secured to a one-half-inch thick black crosspiece backer with a felt backer above, backed by acoustic insulation. The ceiling grid is supported by exposed tee grid main runners tied back with hanger wires and fixed or slotted brackets as required.
HANGER WIRE, AS OCCURS EXPOSED TEE GRID MAIN RUNNER FIN CLG SEE RCP FIXED OR SLOTTED BRACKET, AS OCCURS 7/8" WALL ANGLE MOLDING WD SLAT 1/2" THICK CROSSPIECE BACKER, BLACK, TYP 3/4" OPEN REVEAL FELT BACKER ACOUSTIC INSULATION
