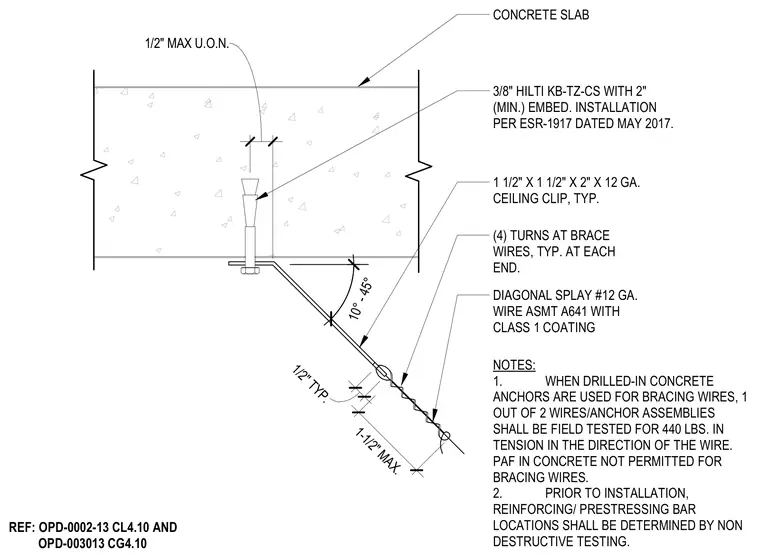

A diagonal splay twelve gauge wire meeting ASTM A641 with a Class 1 coating is secured to an overhead concrete slab using a three-eighths-inch Hilti KB-TZ-CS wedge anchor with a two-inch minimum embedment installed per ESR-1917. The wire connects via a one-and-a-half-inch by one-and-a-half-inch by two-inch twelve-gauge ceiling clip with four turns at the brace wire ends. The diagonal wire angle ranges between ten and forty-five degrees from vertical. One out of every two anchor assemblies must be field tested for four hundred and forty pounds in tension, and reinforcing bar locations must be verified by non-destructive testing prior to drilling.
10° - 45° 3/8" HILTI KB-TZ-CS WITH 2" (MIN.) EMBED. INSTALLATION PER ESR-1917 DATED MAY 2017. CONCRETE SLAB 1 1/2" X 1 1/2" X 2" X 12 GA. CEILING CLIP, TYP. DIAGONAL SPLAY #12 GA. WIRE ASMT A641 WITH CLASS 1 COATING (4) TURNS AT BRACE WIRES, TYP. AT EACH END. 1/2" MAX U.O.N. 1-1/2" MAX. 1/2" TYP. NOTES: 1. WHEN DRILLED-IN CONCRETE ANCHORS ARE USED FOR BRACING WIRES, 1 OUT OF 2 WIRES/ANCHOR ASSEMBLIES SHALL BE FIELD TESTED FOR 440 LBS. IN TENSION IN THE DIRECTION OF THE WIRE. PAF IN CONCRETE NOT PERMITTED FOR BRACING WIRES. 2. PRIOR TO INSTALLATION, REINFORCING/ PRESTRESSING BAR LOCATIONS SHALL BE DETERMINED BY NON DESTRUCTIVE TESTING. REF: OPD-0002-13 CL4.10 AND OPD-003013 CG4.10
