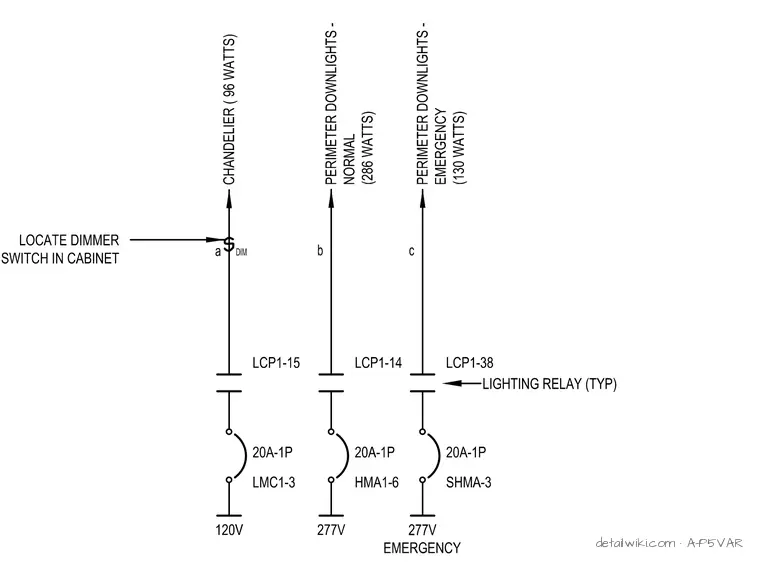

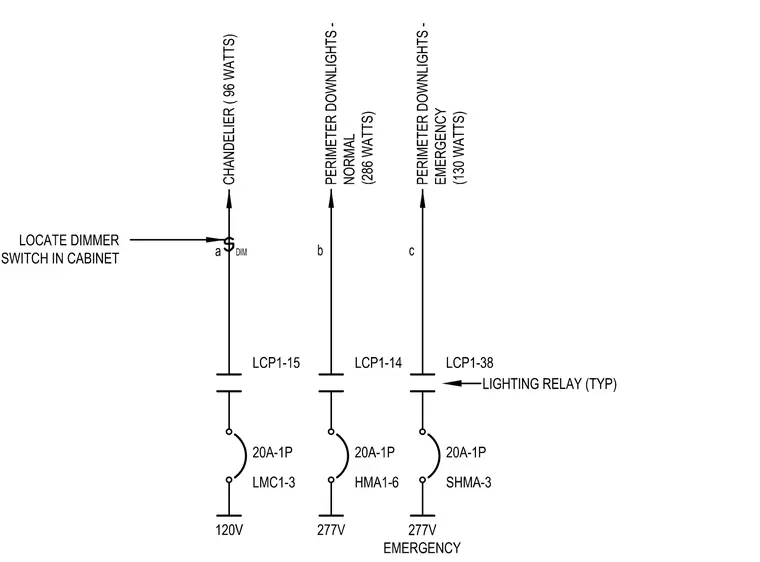

This electrical wiring diagram details three lighting control circuits connected to specific loads including a 96-watt chandelier, normal perimeter downlights at 286 watts, and emergency perimeter downlights at 130 watts. Each circuit incorporates twenty-amp single-pole circuit breakers, lighting relays, and corresponding panel connections running from 120-volt and 277-volt power sources. A dimmer switch is designated to be located inside the cabinet with a feed connected to the chandelier circuit.
