Structural · A-P5J7Z

Braced Frame Beam-Column Connection with Gusset Plate

Materials

Steel

Elements

Beams Bracing Connections / Plates

Connections

Gusset Plate Welded Connection

About this detail

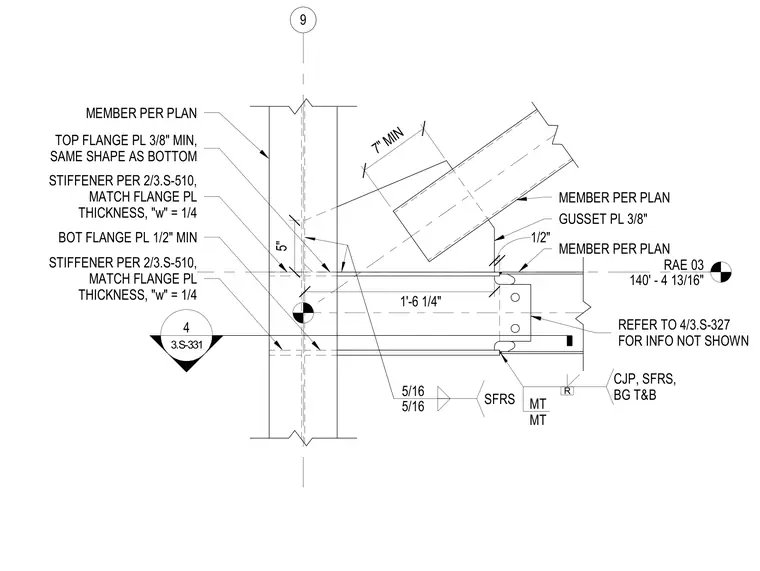

A steel beam intersects a column with a diagonal brace connected via a three-eighths-inch gusset plate. The beam features a three-eighths-inch top flange plate of the same shape as the bottom flange plate, and a one-half-inch bottom flange plate. Stiffener plates with one-quarter-inch welds are provided at the column web aligning with the beam flanges. A five-sixteenths-inch weld connects the framing members, supplemented by complete joint penetration welds, seismic force-resisting system designations, and backing bars top and bottom.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
