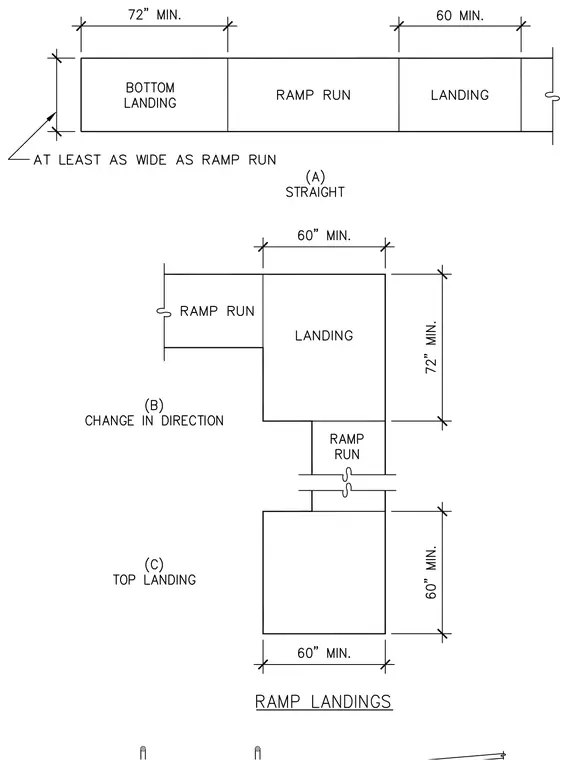

Plan diagrams illustrate standard dimensional requirements for ADA-compliant ramp landings including straight runs, changes in direction, and top landings. The straight configuration requires a bottom landing with a minimum length of 72 inches and a landing length of 60 inches minimum. The change-in-direction configuration requires a 60-inch by 72-inch landing area. The top landing requires minimum dimensions of 60 inches by 60 inches. All landings must be at least as wide as the connecting ramp run.
