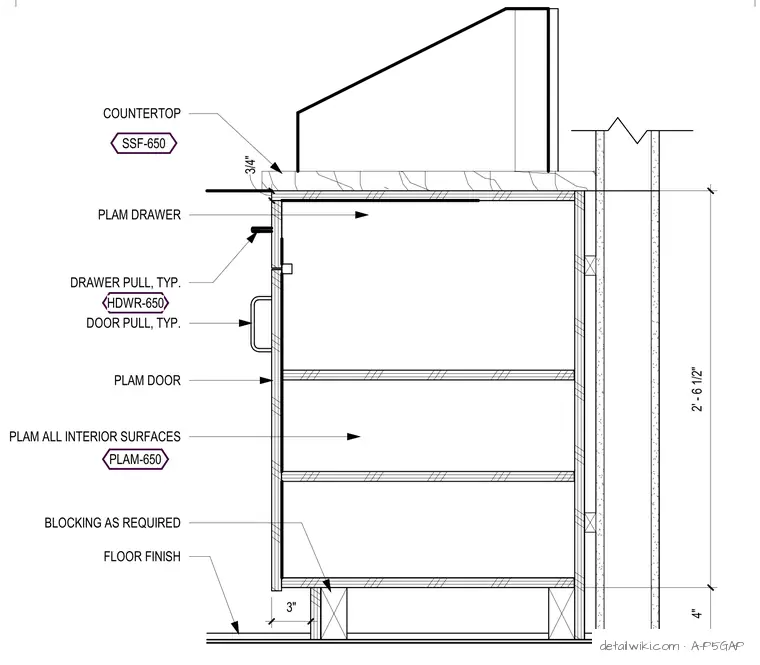

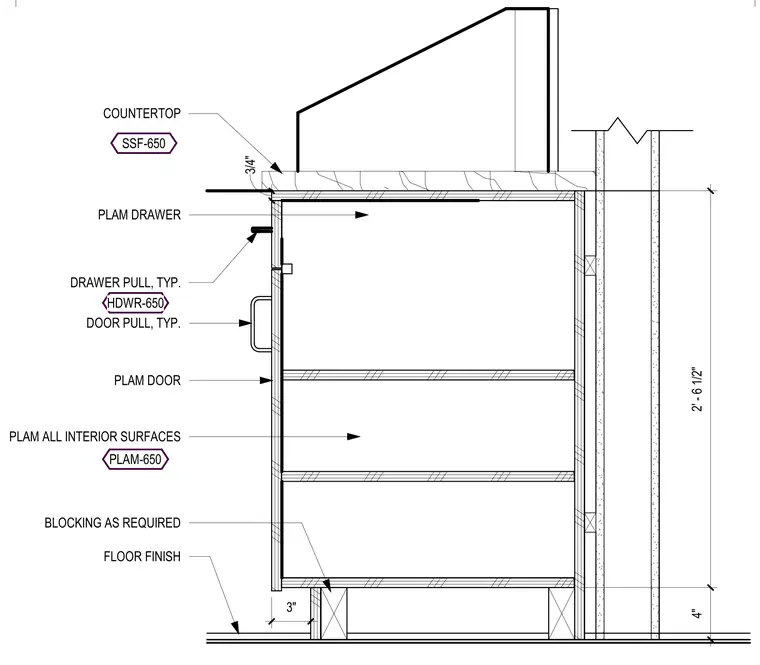

This millwork assembly consists of a cabinet unit with a three-quarter inch thick countertop finished with SSF-650. The cabinet features a plastic laminate drawer and door with typical hardware (HDWR-650) and plastic laminate applied to all interior surfaces (PLAM-650). The unit is supported by blocking as required, set back three inches from the front face, and sits above the finished floor. The total height of the cabinet structure is two feet six and one-half inches, with a four-inch base.
