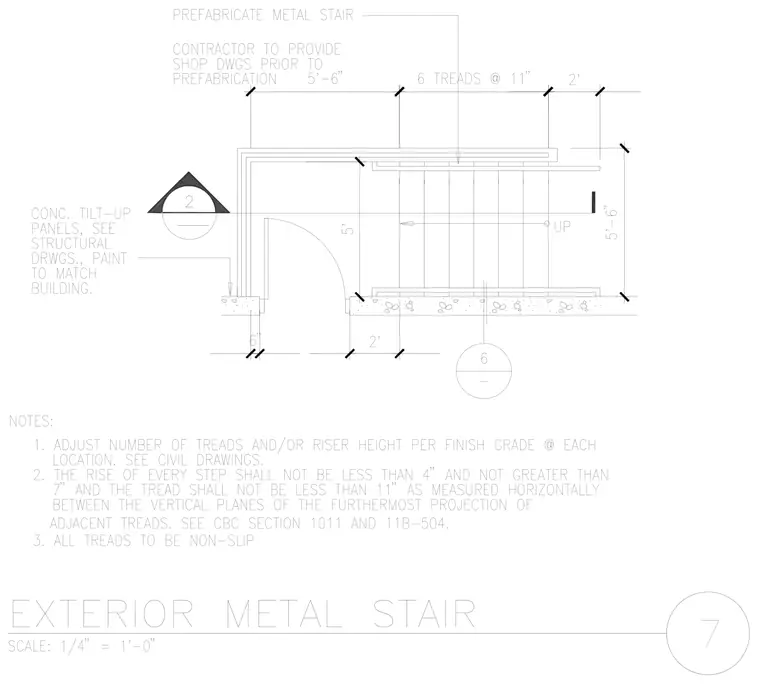

This exterior metal stair plan details a prefabricated metal stair assembly set against concrete tilt-up panels with a painted finish matching the building. The layout incorporates six treads at eleven inches each with a total run dimensioned at five feet six inches and a width of five feet. The contractor must provide shop drawings prior to prefabrication. General notes specify adjusting tread number and riser height per finish grade per civil drawings, complying with California Building Code Section 1011 and 11B-504 for rise and run constraints, and providing non-slip treads.
