This wall transition assembly interfaces an existing corrugated metal siding substrate with a galvanized sheet metal flashing plate and an escutcheon. At the transition point, the metal panel overlaps the flashing corner. Dual sealant applications are specified around the escutcheon penetration with designated sealant notes.

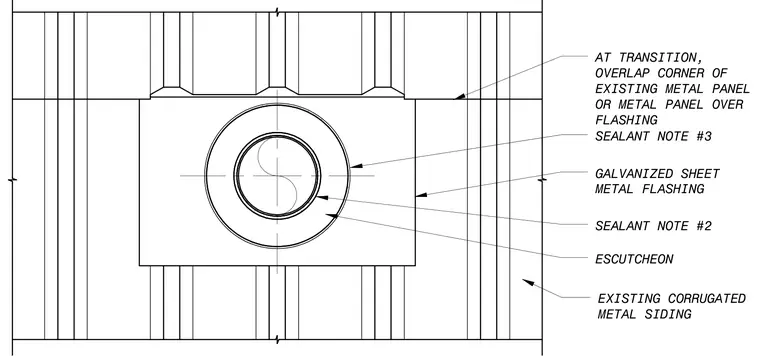

AT TRANSITION, OVERLAP CORNER OF EXISTING METAL PANEL OR METAL PANEL OVER FLASHING SEALANT NOTE #3 GALVANIZED SHEET METAL FLASHING ESCUTCHEON SEALANT NOTE #2 EXISTING CORRUGATED METAL SIDING I \
