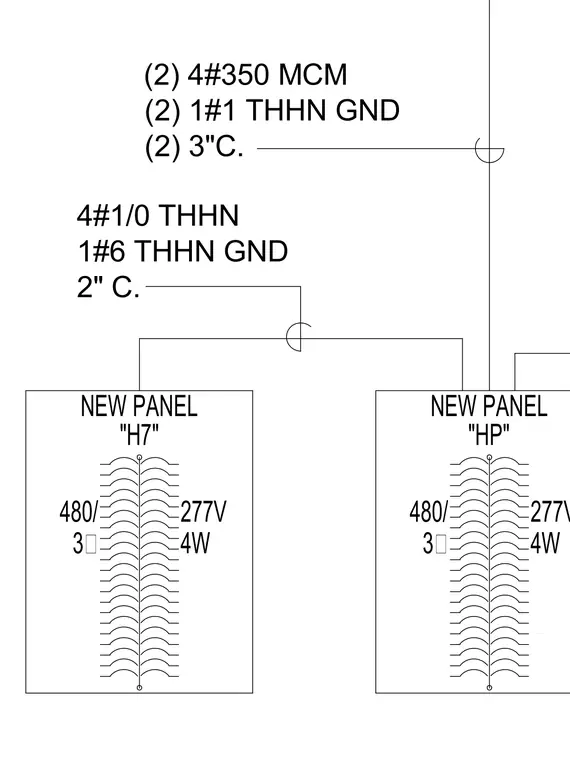

New Panel H7 and New Panel HP are configured for 277V and 480V, 3-phase, 4-wire service. Panel H7 is fed by two conduits of 3-inch size, each containing four 350 MCM THHN conductors and one number 1 THHN ground. Panel HP is fed by a 2-inch conduit containing four 1/0 THHN conductors and one number 6 THHN ground.
NEW PANEL "H7" 277V 480/ 3∅ 4W NEW PANEL "HP" 277V 480/ 3∅ 4W (2) 4#350 MCM (2) 1#1 THHN GND (2) 3"C. 4#1/0 THHN 1#6 THHN GND 2" C.
