Architectural · A-P4VF6

Metal Grate Platform Framing

Materials

Steel Metal (misc.)

Elements

Walls Railings / Guards Roof / Floor Openings

Connections

Bolted Connection

About this detail

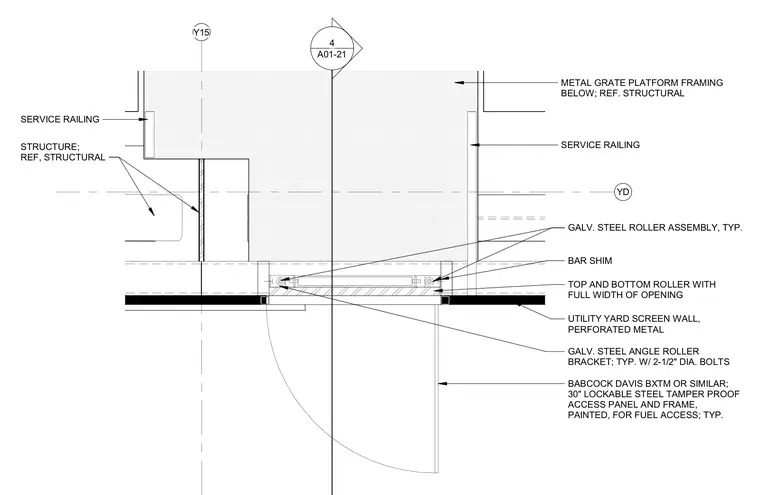

A metal grate platform is framed above with an adjacent service railing and structural supports coordinated per structural drawings. A utility yard screen wall constructed from perforated metal incorporates a galvanized steel roller assembly with top and bottom rollers spanning the full width of the opening. Bar shims are provided for alignment alongside a galvanized steel angle roller bracket secured with two-and-a-half-inch diameter bolts. A thirty-inch lockable steel tamper-proof access panel and frame, painted for fuel access, is integrated into the assembly.
