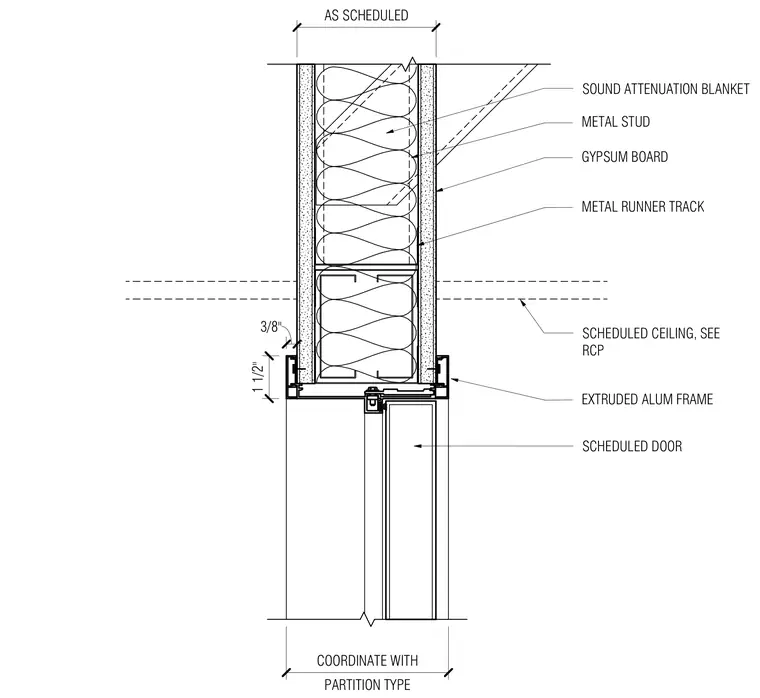

An extruded aluminum door frame is anchored beneath a metal runner track and metal stud partition assembly. Gypsum board clads both faces of the partition and terminates at the frame with defined clearance gaps. A scheduled ceiling intersects the upper portion of the frame assembly per the reflected ceiling plan. Sound attenuation blanket fills the wall cavity above the door head.
AS SCHEDULED 1 1/2" 3/8" GYPSUM BOARD METAL STUD METAL RUNNER TRACK SCHEDULED CEILING, SEE RCP EXTRUDED ALUM FRAME PARTITION TYPE COORDINATE WITH SOUND ATTENUATION BLANKET SCHEDULED DOOR
