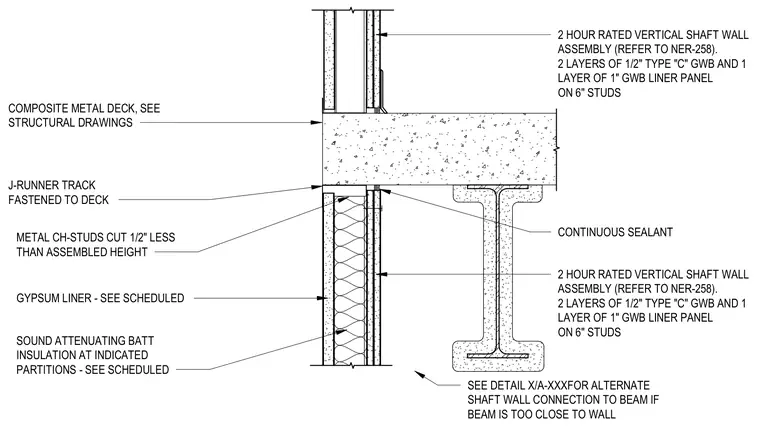

A vertical section of a two-hour rated shaft wall assembly intersects a concrete slab on composite metal deck. The shaft wall framing consists of six-inch metal CH-studs cut one-half inch less than the assembled height, fitted with gypsum liner panels and two layers of one-half inch Type C gypsum wallboard on one side and one layer of one-inch gypsum wallboard liner panel. A J-runner track is fastened directly to the underside of the composite metal deck. Continuous sealant is applied at the intersection of the shaft wall assembly and the supporting wide-flange steel beam. Sound attenuating batt insulation is installed within the stud cavity at indicated partitions as specified in the schedules.
COMPOSITE METAL DECK, SEE STRUCTURAL DRAWINGS J-RUNNER TRACK FASTENED TO DECK METAL CH-STUDS CUT 1/2" LESS THAN ASSEMBLED HEIGHT 2 HOUR RATED VERTICAL SHAFT WALL ASSEMBLY (REFER TO NER-258). 2 LAYERS OF 1/2" TYPE "C" GWB AND 1 LAYER OF 1" GWB LINER PANEL ON 6" STUDS GYPSUM LINER - SEE SCHEDULED SOUND ATTENUATING BATT INSULATION AT INDICATED PARTITIONS - SEE SCHEDULED CONTINUOUS SEALANT 2 HOUR RATED VERTICAL SHAFT WALL ASSEMBLY (REFER TO NER-258). 2 LAYERS OF 1/2" TYPE "C" GWB AND 1 LAYER OF 1" GWB LINER PANEL ON 6" STUDS SEE DETAIL X/A-XXXFOR ALTERNATE SHAFT WALL CONNECTION TO BEAM IF BEAM IS TOO CLOSE TO WALL
