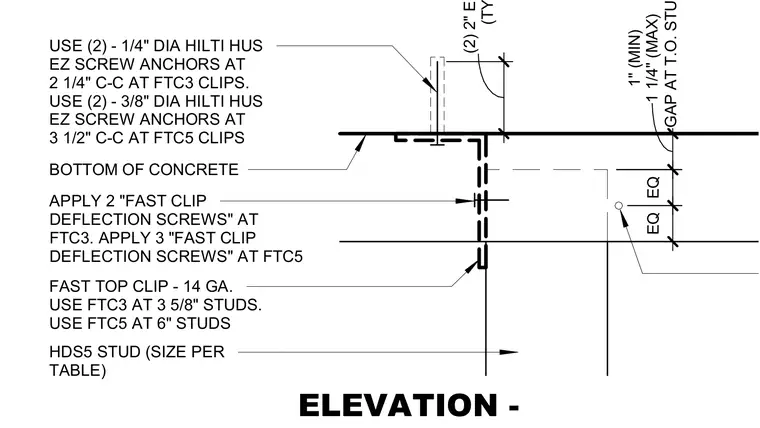

A fourteen-gauge top deflection clip secures an HDS5 stud to the underside of a concrete slab while allowing vertical movement. The clip fastens to the concrete using two quarter-inch diameter Hilti HUS-EZ screw anchors at two and a quarter inches on center for FTC3 clips, or two three-eighths-inch diameter anchors at three and a half inches on center for FTC5 clips. Two deflection screws attach FTC3 clips to three-and-five-eighths-inch studs, while three deflection screws attach FTC5 clips to six-inch studs. A one-inch minimum to one-and-a-quarter-inch maximum gap is maintained at the top of the stud to accommodate structural deflection.
APPLY 2 "FAST CLIP DEFLECTION SCREWS" AT FTC3. APPLY 3 "FAST CLIP DEFLECTION SCREWS" AT FTC5 (TYP) (2) 2" EMBED FAST TOP CLIP - 14 GA. USE FTC3 AT 3 5/8" STUDS. USE FTC5 AT 6" STUDS BOTTOM OF CONCRETE EQ EQ GAP AT T.O. STUD 1" (MIN) 1 1/4" (MAX) USE (2) - 1/4" DIA HILTI HUS EZ SCREW ANCHORS AT 2 1/4" C-C AT FTC3 CLIPS. USE (2) - 3/8" DIA HILTI HUS EZ SCREW ANCHORS AT 3 1/2" C-C AT FTC5 CLIPS HDS5 STUD (SIZE PER TABLE) ELEVATION -
