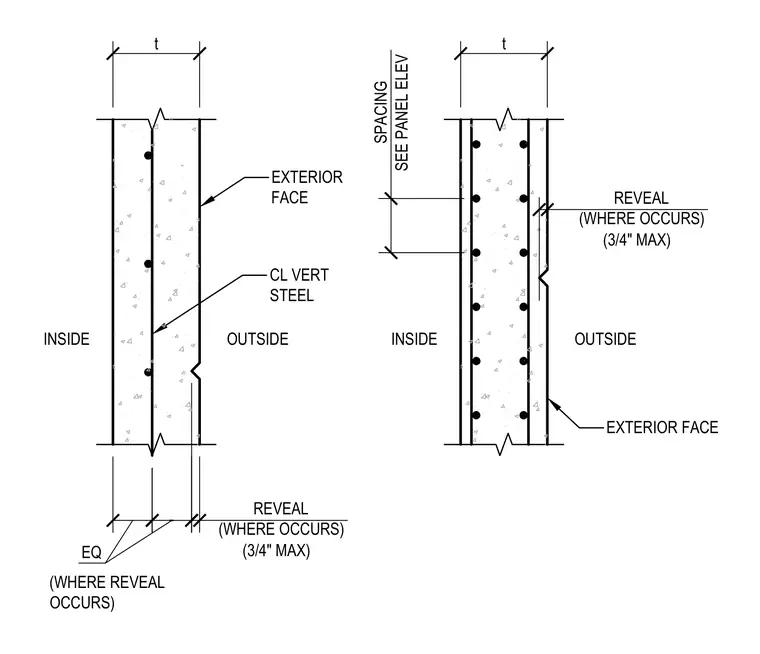

Reinforcing steel is centered within the concrete panel wall section with vertical steel aligned alongside architectural reveals. Reveals are limited to a maximum depth of three-quarters of an inch on the exterior face of the wall. Spacing of the reinforcing bars is determined per the panel elevation drawings. Dimensions ensure equal spacing across the reveal where it occurs.
CL VERT STEEL t - EQ EXTERIOR FACE (WHERE REVEAL OCCURS) REVEAL (WHERE OCCURS) t REVEAL (WHERE OCCURS) EXTERIOR FACE SPACING SEE PANEL ELEV (3/4" MAX) (3/4" MAX) OUTSIDE INSIDE OUTSIDE INSIDE
