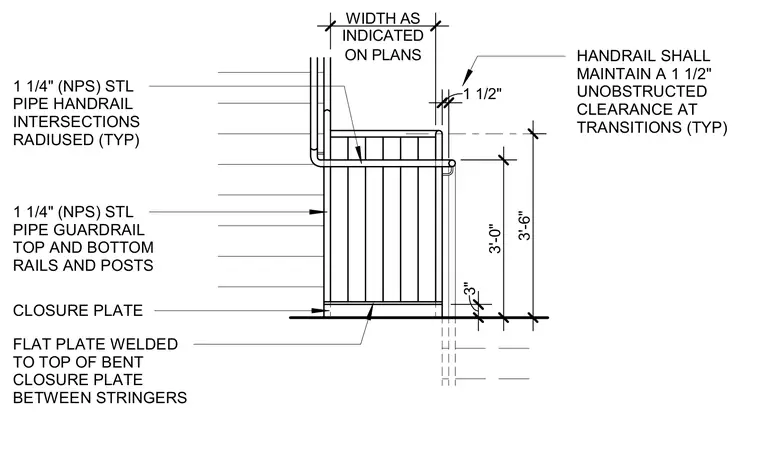

One-and-one-quarter-inch nominal pipe size steel pipe forms the top and bottom rails and posts of the guardrail, with handrail intersections radiused for continuity. The handrail maintains a one-and-one-half-inch unobstructed clearance at transitions. A flat plate is welded to the top of a bent closure plate positioned between the stringers. The guardrail stands at a three-foot-six-inch height above the stair framing, with a three-foot handrail height.
3'-0" 1 1/2" CLOSURE PLATE HANDRAIL SHALL MAINTAIN A 1 1/2" UNOBSTRUCTED CLEARANCE AT TRANSITIONS (TYP) 1 1/4" (NPS) STL PIPE GUARDRAIL TOP AND BOTTOM RAILS AND POSTS 1 1/4" (NPS) STL PIPE HANDRAIL INTERSECTIONS RADIUSED (TYP) FLAT PLATE WELDED TO TOP OF BENT CLOSURE PLATE BETWEEN STRINGERS 3" ON PLANS WIDTH AS INDICATED 3'-6"
