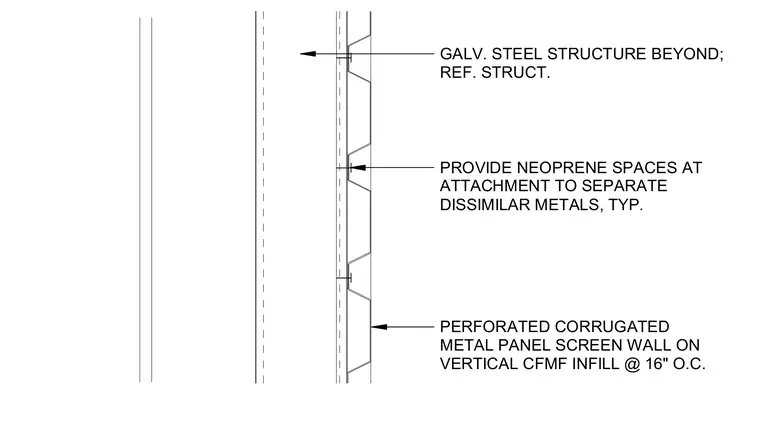

A perforated corrugated metal panel screen wall attaches to vertical cold-formed metal framing spaced at sixteen inches on center. Neoprene spacers separate dissimilar metals at attachments to prevent galvanic corrosion. A galvanized steel structure sits beyond the framing assembly per structural drawings.
GALV. STEEL STRUCTURE BEYOND; REF. STRUCT. PROVIDE NEOPRENE SPACES AT ATTACHMENT TO SEPARATE DISSIMILAR METALS, TYP. PERFORATED CORRUGATED METAL PANEL SCREEN WALL ON VERTICAL CFMF INFILL @ 16" O.C.
