Architectural · A-P4BWK

Steel Plate Outrigger Connection at Curtain Wall and Column

Materials

Steel Timber / Wood

Elements

Columns Walls Curtain Walls Connections / Plates

Connections

HSS Connection Welded Connection

About this detail

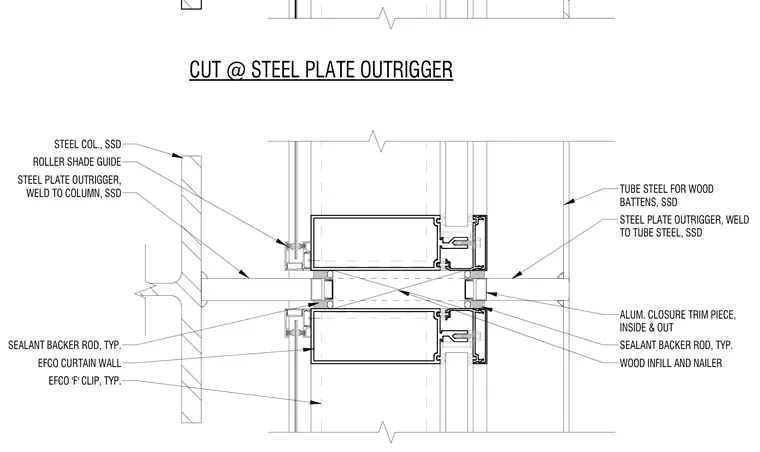

A steel plate outrigger is welded to the structural steel column and extends outward to support the curtain wall assembly. Tube steel members receive wood battens and wood infill with nailers, secured via typical aluminum F-clips. An aluminum closure trim piece finishes the interior and exterior junctions. Sealant with backer rod is applied typically at the joints between components.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
