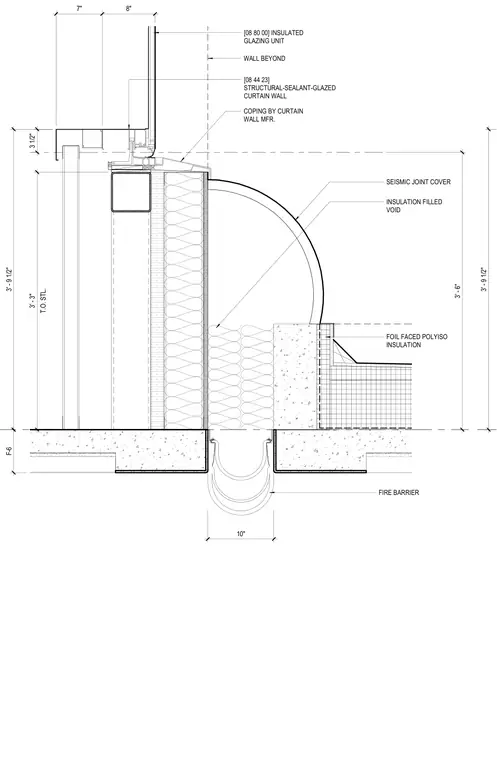

A structural-sealant-glazed curtain wall assembly intersects a floor slab adjacent to a seismic expansion joint. The system incorporates an insulated glazing unit and a custom coping provided by the curtain wall manufacturer. A seismic joint cover spans the ten-inch void between building sections, backed by foil-faced polyisocyanurate insulation. An insulation-filled void and a fire barrier are installed within the joint assembly to maintain fire resistance ratings.
3' - 9 1/2" 10" 3' - 6" FIRE BARRIER INSULATION FILLED VOID F-6 3' - 9 1/2" 8" 7" 3 1/2" FOIL FACED POLYISO INSULATION [08 80 00] INSULATED GLAZING UNIT COPING BY CURTAIN WALL MFR. [08 44 23] STRUCTURAL-SEALANT-GLAZED CURTAIN WALL WALL BEYOND SEISMIC JOINT COVER T.O. STL. 3' - 3"
