A galvanized steel roof hatch measuring 36 inches by 30 inches, model PH-G, is set within a roof opening of 3 feet by 2 feet 6 inches. An integral folding aluminum guard rail system, model AGRS-X, surrounds the hatch and includes a self-closing gate. The hatch railing system complies with OSHA fall protection regulation 29CFR 1910.23.

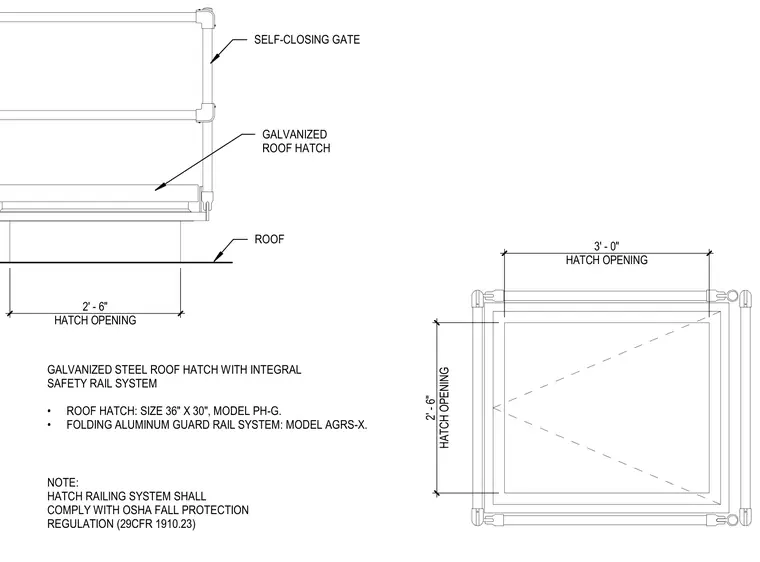

HATCH OPENING 2' - 6" SELF-CLOSING GATE GALVANIZED ROOF HATCH ROOF NOTE: HATCH RAILING SYSTEM SHALL COMPLY WITH OSHA FALL PROTECTION REGULATION (29CFR 1910.23) GALVANIZED STEEL ROOF HATCH WITH INTEGRAL SAFETY RAIL SYSTEM • ROOF HATCH: SIZE 36" X 30", MODEL PH-G. • FOLDING ALUMINUM GUARD RAIL SYSTEM: MODEL AGRS-X. HATCH OPENING 2' - 6" HATCH OPENING 3' - 0"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
