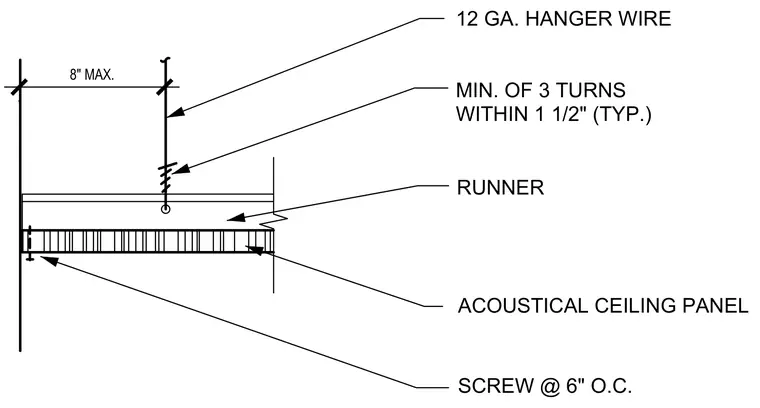

An acoustical ceiling panel runner is suspended by a twelve-gauge hanger wire secured with a minimum of three turns within one and one-half inches typically. The ceiling panel meets the vertical wall assembly with a maximum eight-inch spacing and is fastened with screws at six inches on center.
8" MAX. SCREW @ 6" O.C. ACOUSTICAL CEILING PANEL RUNNER WITHIN 1 1/2" (TYP.) MIN. OF 3 TURNS 12 GA. HANGER WIRE
