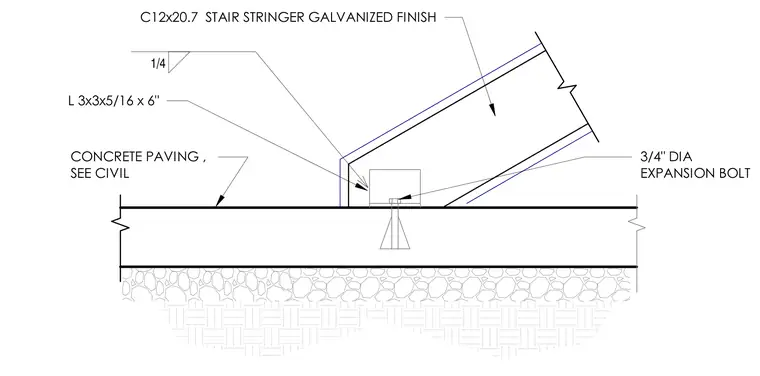

A C12x20.7 galvanized steel stair stringer bears onto concrete paving and connects via a 3-inch by 3-inch by 5/16-inch angle, 6 inches long. The angle is welded to the stringer with a quarter-inch fillet weld and anchored to the concrete paving with a three-quarter-inch diameter expansion bolt.
C12x20.7 STAIR STRINGER GALVANIZED FINISH L 3x3x5/16 x 6" CONCRETE PAVING , SEE CIVIL 3/4" DIA EXPANSION BOLT 1/4
