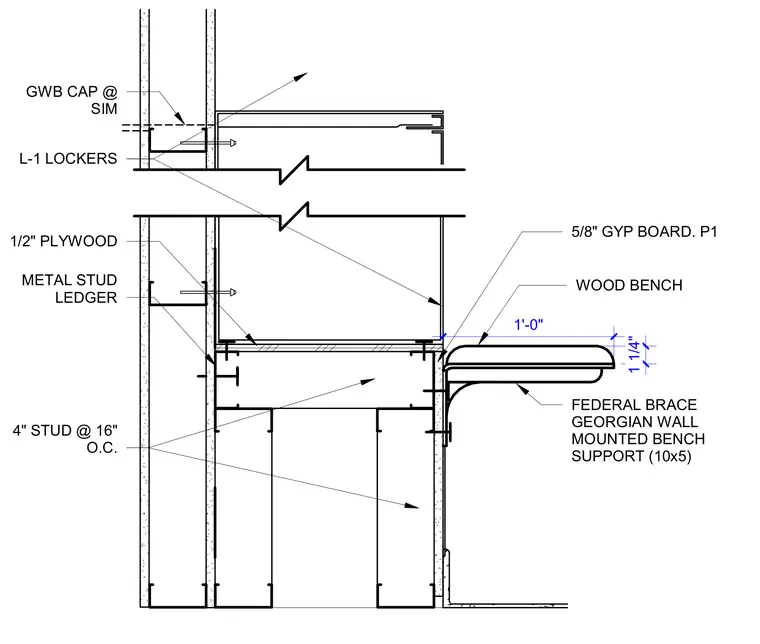

A 1 1/4-inch thick wood bench is supported by a wall-mounted metal bracket secured to cold-formed steel studs spaced at 16 inches on center. The assembly includes a gypsum board finish over a metal stud ledger and 1/2-inch plywood backing, with lockers positioned above and gypsum board capping at the top.
METAL STUD LEDGER 1/2" PLYWOOD L-1 LOCKERS 4" STUD @ 16" O.C. 5/8" GYP BOARD. P1 1'-0" FEDERAL BRACE GEORGIAN WALL MOUNTED BENCH SUPPORT (10x5) 1 1/4" WOOD BENCH GWB CAP @ SIM
