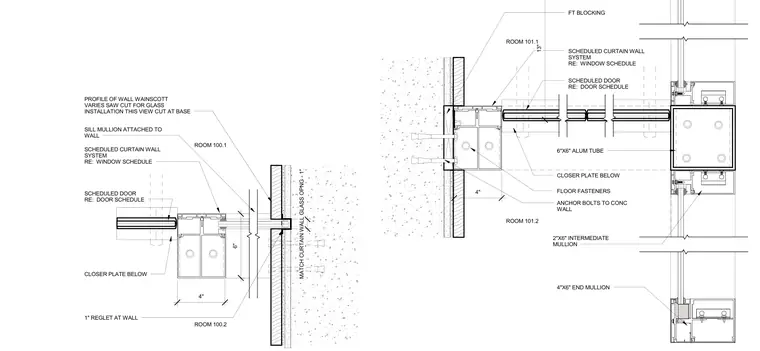

The base detail connects a scheduled door and curtain wall system to a concrete wall using anchor bolts and floor fasteners. A six-inch by six-inch aluminum tube and two-inch by six-inch intermediate mullion frame the opening, supported by a four-inch by six-inch end mullion. A closer plate is positioned below, alongside a one-inch reglet at the wall interface. The wall wainscot profile varies to accommodate a saw cut for glass installation at the base.
SCHEDULED CURTAIN WALL SYSTEM RE: WINDOW SCHEDULE SCHEDULED DOOR RE: DOOR SCHEDULE CLOSER PLATE BELOW 1" REGLET AT WALL SILL MULLION ATTACHED TO WALL PROFILE OF WALL WAINSCOTT VARIES SAW CUT FOR GLASS INSTALLATION THIS VIEW CUT AT BASE 4" MATCH CURTAIN WALL GLASS OPNG - 1" ROOM 100.1 ROOM 100.2 6" ROOM 101.1 ROOM 101.2 4" FT BLOCKING SCHEDULED CURTAIN WALL SYSTEM RE: WINDOW SCHEDULE SCHEDULED DOOR RE: DOOR SCHEDULE CLOSER PLATE BELOW ANCHOR BOLTS TO CONC WALL FLOOR FASTENERS 6"X6" ALUM TUBE 2"X6" INTERMEDIATE MULLION 4"X6" END MULLION 13"
